What are the common faults in the fiber cement board slurry

Author：admin source：未知 Release date：2026-05-07 16:53

Information summary：

The fiber cement board slurry step system is the core part of slurry transportation and forming.Long-term operation is prone to three types of faults:mechanical,slurry-related,and control....

　　The fiber cement board slurry step system is the core part of slurry transportation and forming.Long-term operation is prone to three types of faults:mechanical,slurry-related,and control.

　　1.Uneven slurry distribution and board thickness deviations.This is mainly due to wear and deformation of the step slurry scraper,scaling and blockage in the slurry trough,or localized blockage at the feeding port,causing fluctuating slurry flow.The formed board may be thicker on one side and thinner on the other,with defects such as ripples or exposed substrate due to insufficient material.

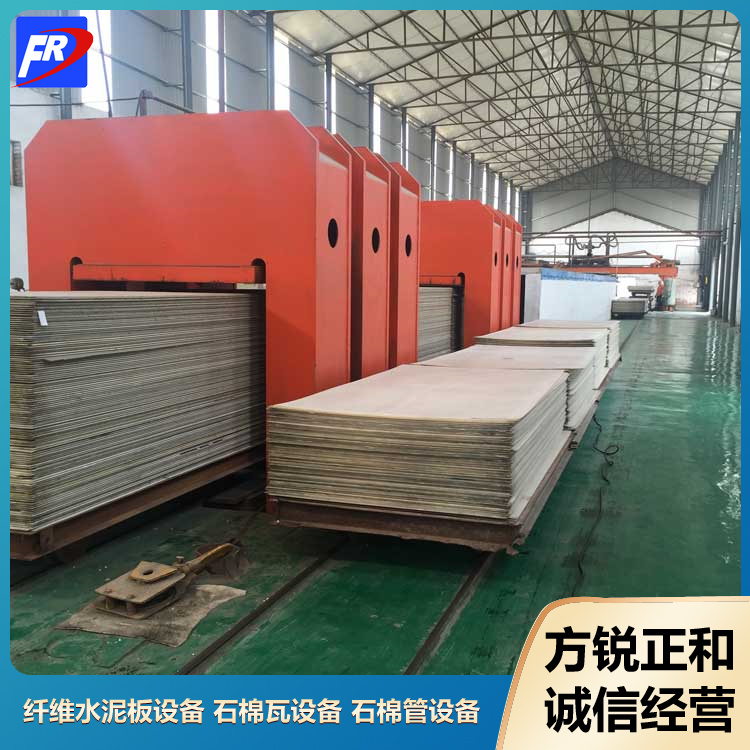

Fiber cement board equipment 　　

2.Slurry accumulation,overflow,and leakage.Malfunctioning slurry trough level control,unstable pump flow,or misaligned step stroke limits can lead to slurry buildup and overflow.Aging sealing strips and deformed baffles can also cause side leakage,contaminating the equipment and wasting material.

　　3.Sticking and unusual noise in the walking mechanism.Accumulated material and sand on the step slurry guide rail,worn or stuck rollers,and loose or misaligned drive chains can cause vibrations,abnormal sounds,and unstable movement during operation.In severe cases,it can result in jamming and shutdown,affecting continuous production rhythm.

　　4.Transmission and electrical control faults.Motor and gearbox overheating and slipping,inverter parameter disorder,or malfunctioning limit switches can cause inaccurate back-and-forth step movements,delayed starts and stops,and incorrect actions,making precise slurry placement impossible.

　　5.Slurry trough scaling and blockage.Fiber cement slurry is highly alkaline and prone to precipitation and scaling.Long-term neglect can cause deposits on the trough walls,pipes,and filters,reducing the slurry passage cross-section,leading to poor slurry supply,frequent interruptions,and significantly lowering forming quality and production efficiency.
