Analysis of the Core Process and Structure of Centrifugal Fo

Author：admin source：未知 Release date：2026-07-09 11:23

Information summary：

Asbestos cement pipe complete equipment is professional construction machinery for water supply and drainage and underground cable conduits....

　　Asbestos cement pipe complete equipment is professional construction machinery for water supply and drainage and underground cable conduits.The mainstream relies on the centrifugal forming process to shape pipe blanks.The entire production line covers six main function modules:raw material mixing,quantitative feeding,high-speed centrifugal forming,static curing and steaming,automatic demolding,and pipe end trimming.The raw materials—portland cement,fiber reinforcement materials,and clean water—are mixed in proportion and fully loosened using a twin-shaft forced mixer,preventing slurry clumping and layering and ensuring uniform overall pipe strength.

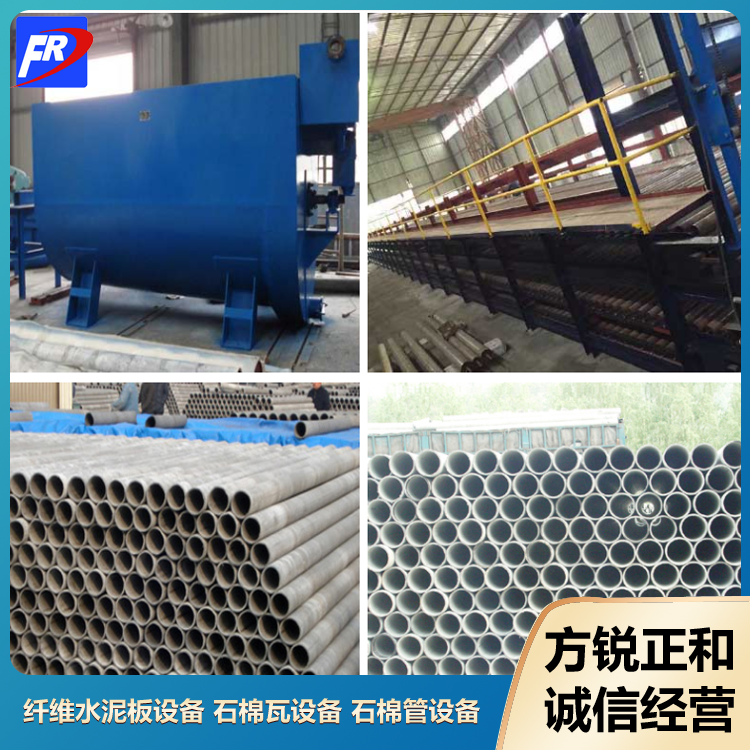

Asbestos cement pipe complete equipment 　　

The core forming machine is equipped with a heavy-duty welded base and a high-precision spindle assembly.Paired with a frequency conversion speed control system,it accurately adjusts the rotation speed,using centrifugal force to evenly press the slurry against the mold walls while simultaneously expelling free water and air bubbles from the pipe blank.This greatly increases pipe wall density,resulting in smooth inner walls,uniform thickness,and excellent impermeability and pressure resistance.The equipment can switch steel molds of different specifications,supporting mass production of asbestos cement pipes of various diameters.

　　The supporting curing system involves two steps:ambient pre-curing and high-pressure steaming.Standardized temperature and pressure curves allow full hydration of the cement,significantly improving pipe flexural strength,compressive strength,and resistance to acid and alkali corrosion.The whole line is equipped with a centralized electrical control console,allowing all process parameters to be adjusted with a single button,reducing manual intervention.The entire machine is designed to be dustproof and moisture-proof,suitable for high-humidity and dusty workshop conditions,operating stably with a high yield of qualified finished products.
