How does the step slurry system of fiber cement board equipm

Author：admin source：未知 Release date：2026-04-16 09:15

Information summary：

The fiber cement board step slurry system(also known as the flow slurry or slurry distribution system)is the core of the forming process.Its main function is to deliver the uniformly mixed slurry in a stable and even manner onto the forming ...

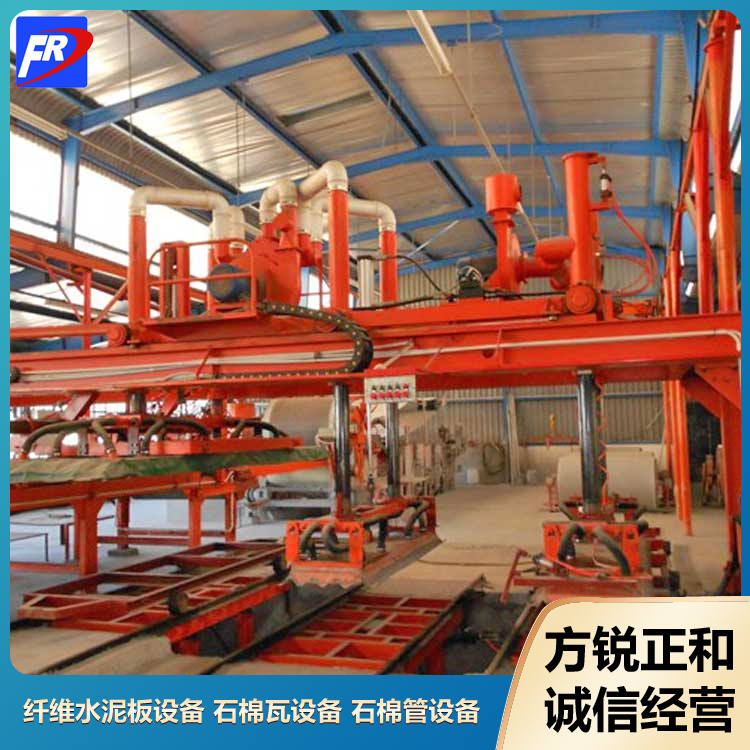

Fiber cement board equipment 　　

During operation,fiber cement slurry with a concentration of about 10%-20%is pumped through pipes to the flow slurry box(step slurry box).The flow slurry box is equipped with a low-speed stirring device to prevent fiber sedimentation and slurry layering,maintaining stable concentration and flow properties.The box has an overflow weir and adjustment device to control the slurry level and discharge amount,ensuring uniform discharge across the width of the felt.

　　The slurry flows evenly from the bottom or side lip of the flow slurry box in a thin layer onto the continuously moving forming felt.The felt is a porous filter cloth with a vacuum box underneath,which quickly draws out water from the slurry using negative pressure,allowing fibers and cement particles to be filtered rapidly,forming a continuous and uniform thin layer of slurry on the felt surface.

　　At the same time,the flow slurry box can adjust in coordination with the speed of the felt to ensure that the slurry flow rate matches the line speed of the felt,preventing the slurry layer from accumulating or stretching too thin.Some systems are also equipped with multi-stage step slurry units,gradually accumulating multiple layers of slurry to reach the target board slab thickness.The entire process is controlled in coordination by liquid level,flow rate,vacuum degree,and speed to achieve stable slurry delivery and uniform distribution,providing a qualified wet slab for subsequent dewatering,compaction,and forming,directly affecting board density uniformity and surface quality.
