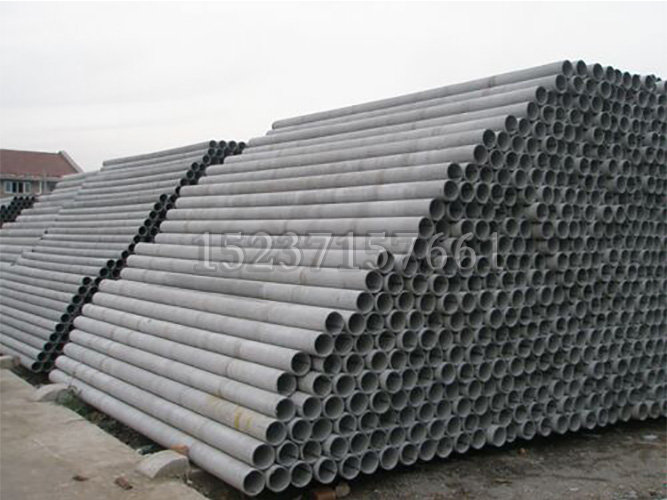

Asbestos cement pipe is also known as fiber cement pipe. The asbestos cable pipe independently developed in China adopts advanced technology such as electric reaming, using high-strength non-polluting asbestos fiber as the coil material, adding high-strength, high-molecular vinylon, plant fiber and other raw materials, and using high-grade cement as the main raw material. A new generation of reinforced fiber cement cable tube made of rolled, asbestos cement cable tube has high strength (tube body flexural load, external pressure load 10000-30000N), acid and alkali corrosion resistance, high temperature resistance (no deterioration above 1500 ℃) heat dissipation Good (thermal coefficient ∠1.0), laying coefficient of 0.96, large current carrying capacity, non-magnetic, single-core cable, no eddy current, smooth inner wall, friction coefficient ∠0.30, easy cutting and processing. After the asbestos cement cable pipe is laid underground, the moist soil makes the hardening process of the pipe body continue, and the strength of the asbestos cement pipe body increases, and the service life can reach 100 years.

Asbestos pipe machine


　　What equipment is needed to produce asbestos cement pipe? What equipment does the asbestos pipe machine have? The equipment configuration of asbestos pipe machine is different according to the production process. The following are the flow process equipment: large tank, pulp machine, slurry tank, net cage, net wheel, breast roll, pressure group assembly, vacuum pump, sewage Pump, clean water pump, guide roller, main machine, profile, tube mold, electric reaming, automatic transfer of tube mold, demoulding, mixed cutting machine, roll lifting, pre-hardening guide roller, pre-hardening chain, pre-hardening spindle, lifting Machines, profiles (channel steel), motor reducers, electrical distribution cabinets, wires, pipe processing, section head processing, motors, pipe profiles, automatic boxes, other embedded parts, the specific asbestos pipe production line equipment needs to be based on the user’s The output is used for reasonable configuration.



　　 There are two main production processes for Asbestos pipe machine:



　　 Copying method: 1. Processing of raw materials 2. Preparation and storage of slurry 3. Copying bad 4. Direct pressure forming 5. Curing 6. Production cycle



　　 flow slurry method: 1, flow slurry 2, dehydration 3, deterioration 4, cleaning and adjustment of wool cloth 5, conveying device



　　Asbestos cement pipe production raw materials and formula ratio:



　　 cement 50%-60%, asbestos 8%-15%, glass fiber 2%-3%, stone powder or fly ash 20%-30%



　　 Calcium silicate material: fly ash, sepiolite, wollastonite, mica flakes, stone powder



　　Fiber materials: asbestos, glass fiber, vinylon fiber, paper pulp, wood pulp
